Beamsplitter
Beamsplitters are optical components used to split input light into two separate parts,mainly include cube polarization beamsplitter, plate polarization beamsplitter and cube non-polarization beamspli..

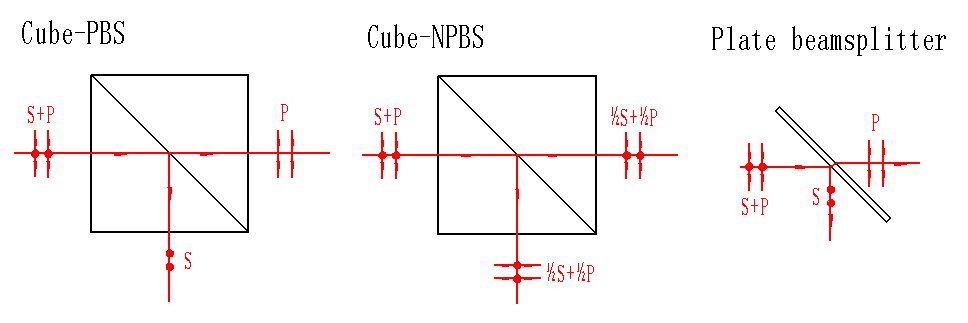

Beamsplitters are optical components used to split input light into two separate parts,mainly include cube polarization beamsplitter, plate polarization beamsplitter and cube non-polarization beamsplitter.
Cube (non-)polarization beamsplitter consists of a pair of right angle prisms cemented together with a dielectric (non-)polarization beamsplitter coating on the hypotenuse of one of the prisms. An anti-reflection coating has been applied to each outside surface of the beamsplitter to achieve less than 0.2% reflection per surface.
Plate beamsplitters are used for most laser applications as they exhibit low absorption. And the performance of a beamsplitter is mainly dependent on the coating specifications.
Applications:
Capability:
PARAMETER | COMMERCIAL | HIGH PRECISION |
Material | N-BK7.Fused Silica,N-SF11,or depend on request | |
Clear Aperture | ≥85% | ≥95% |
Dimension Tolerance | ±0.1mm | ±0.02mm |
Flatness | λ/4 @632.8nm | λ/10@632.8nm |
Surface Quality(S/D) | 40-20 | 10-5 |
Beam Deviation | ±3 arcmin | ±30 arcsec |
Angle Tolerance | ±1 arcmin | ±10arcsec |
Assembly | Cemented with Epoxy or optical bonding | |
Coating | PBS Coating: Tp>98%,Rs>99%;Extinction Ratio>30dB
NPBS Coating: Tp=Ts=Rp=Rs=50%±3% AR:R<0.2%@λc±40nm |
Other material ,sizes, tolerance and coatings are also available upon request.
