Wollaston Polarizer

Wollaston Polarizer Wollaston Polarizer is made of birefringence material prisms that are cemented together. The ordinary ray in the first half of the prism becomes the extraordinary ray in the second..

Wollaston Polarizer

产品说明

 Wollaston Polarizer Wollaston Polarizer is made of birefringence material prisms that are cemented together. The ordinary ray in the first half of the prism becomes the extraordinary ray in the second half. The Wollaston Polarizing beam splitter has approximately twice the deviation for the Rochon Polarizer.

Material: MgF2,α-BBO,Calcite ,YVO4 or Quartz
Wavelength Range: MgF2:130-4000nm; α-BBO:190-3500nm; Calcite:350-2300nm; YVO4:500-4000nm; Quartz:200-2300nm
Extinction Ratio： MgF2: ＜5×10-6; α-BBO:＜5×10-6; Calcite:＜5×10-5; YVO4 ：＜5×10-5; Quartz: ＜5×10-5
Surface Quality： 20-10
Beam Deviation: ＜3 arc minutes
Wavefornt Distortion: λ/4@633nm
Damage Threshold： ＞500MW/cm2
Coating： Single Layer MgF2

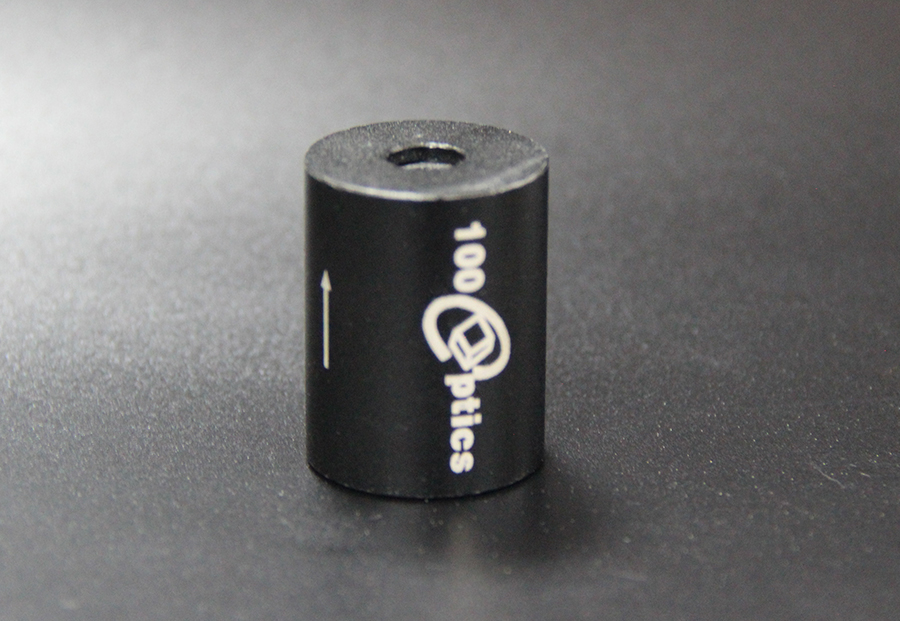

Holder： Black Anodized Aluminum

Cemented

Separate Ordinary and Extraordinary Beams at Certain Angle
Suitable for Low Power Application and where the deviation is required
