Polarizing Cube Beamsplitters

Polarizing Cube Beamsplitters split randomly polarized beams into two orthogonal, linearly,polarized components-S-polarized light is reflected at a 90deg. Angle while P -polarized light is transmitte..

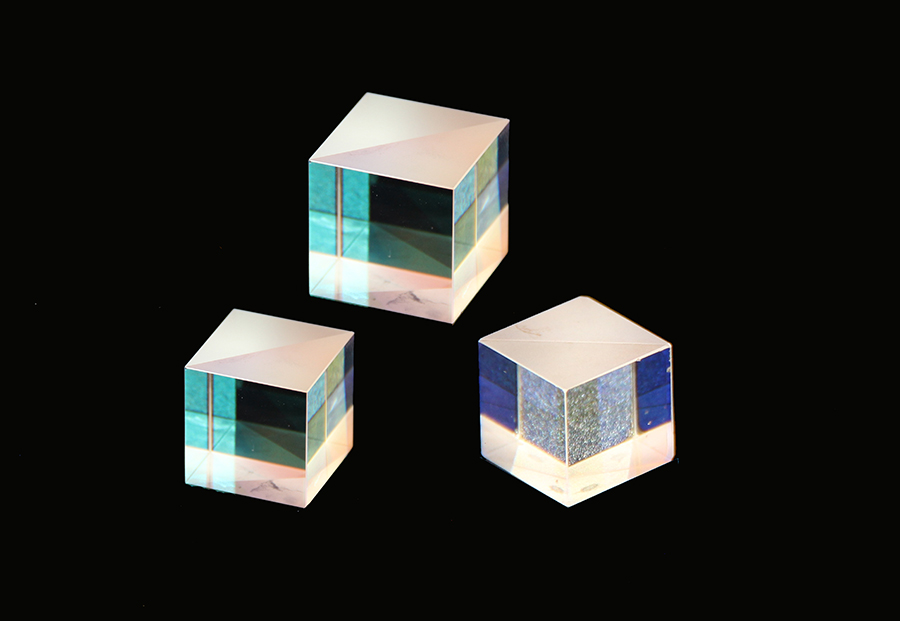

Polarizing Cube Beamsplitters

产品说明

Polarizing Cube Beamsplitters split randomly polarized beams into two orthogonal, linearly,polarized components-S-polarized light is reflected at a 90deg. Angle while P

-polarized light is transmitted. Each beamsplitter consists of a pair of precision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of prisms

Dimension Tolerance	±0.2mm
Flatness	λ/4@632.8nm
Surface Quality	60-40 scratch and dig
Beam Deviation	<3 arc minutes
Extinction Ratio	>100:1
Principal Transmittance	Tp>95% and Ts<1%
Principal Reflectance	Rs>99% and Rp<5%
Hypotenuse Face	Polarization Beamsplitter Coating
All Input and Output Faces	AR Coating
