Fused Silica Windows

Fused Silica Window is made from the material of fused silica. Fused Silica is a superior optical material possesses excellent optical, chemical and physical properties which is formed by chemical com..

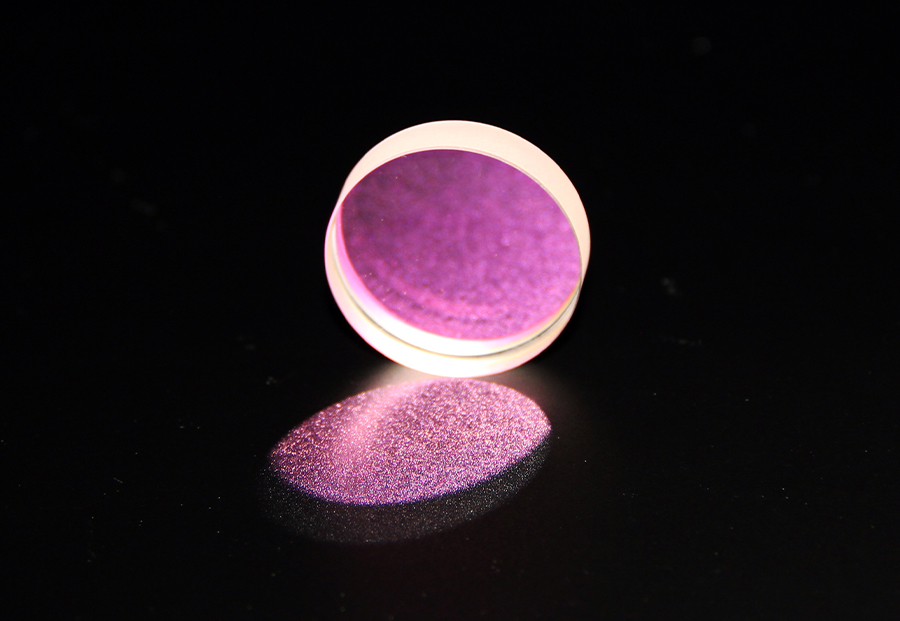

Fused Silica Windows

产品说明

Fused Silica Window is made from the material of fused silica. Fused Silica is a superior optical material possesses excellent optical, chemical and physical properties which is formed by chemical combination of silicon and oxygen.

Advantages of fused silica windows include: good UV and IR transmission, stability and resistance to thermal shock over large temperature excursions, low thermal expansion, wider thermal operating range and high laser damage threshold.

Specifications:

Dimension Tolerance: +0.0/-0.2mm
Thickness Tolerance: ±0.2mm（General),±0.05(High Precision)
Surface Quality: 60/40（General),10/5(High Precision)
Clear Aperture: ＞90%
Flatness: λ/2@633nm（General),λ/10@633nm Precision)
Parallelism: <3 arc min.(General). <3 arc sec.(High Precision)
AR Coated: Uncoated, AR, HR, PR, etc.

Typical Sizes:

Round Shape:Diameter(mm): Φ5.0；Φ10.0 ；Φ12.7；Φ15.0；Φ20.0；
Φ25.4；Φ30.0；Φ38.1；Φ50.8；Φ76.2
Square Shape:WxH(mm): 5.0x5.0；10.0x10.0 ；15.0x15.0 ；
20.0x20.0；25.0x25.0；50.0x50.0
Thickness: 0.5；1.0；1.5；2.0；3.0；4.0；
5.0；6.0；8.0；10.0; 50.0
