Nonlinear optical crystal

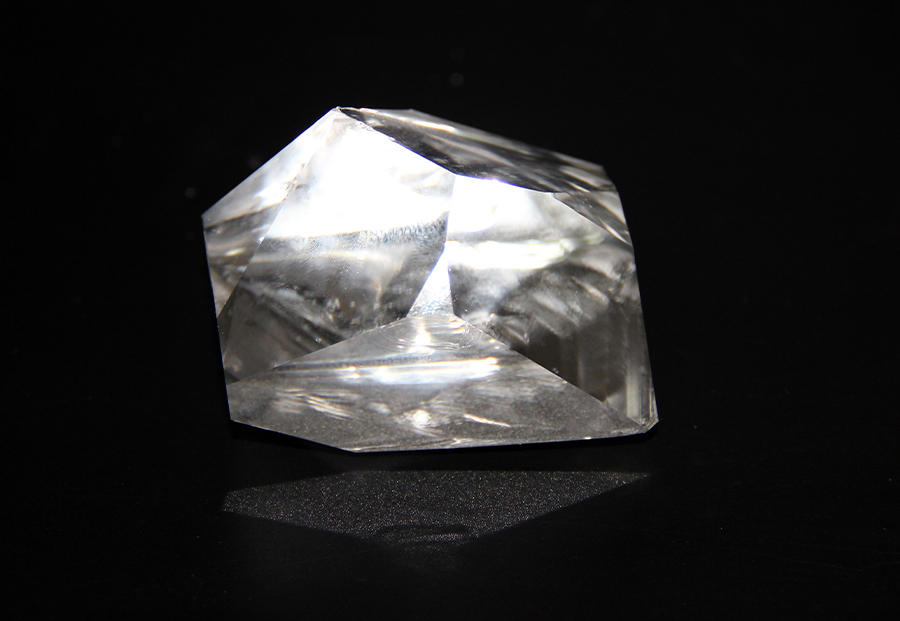

LBO Crystal
LBO (Lithium triborate or LiB3O5) is a very useful nonlinear optical crystal material, especially for SHG THG of high-intensity laser radiation, intracavity SHG THG, deep-UV SFG and OPO applications...

LBO (Lithium triborate or LiB3O5) is a very useful nonlinear optical crystal material, especially for SHG THG of high-intensity laser radiation, intracavity SHG THG, deep-UV SFG and OPO applications.
Item: Nonlinear Optical Crystal LBO
Size(W*H)mm | 2x2~55x55 |
Length(L)mm | 0.05~20 |
Phase Matching Angle(θ,φ) |
Angel or according to customer request |
Match Type: | Type I or Type II |
Angle tolerance: |
Δθ<±0.2°; Δφ<±0.2° |
Size tolerance: |
(W ±0.1mm) x (H ±0.1mm) x (L +0.2mm/-0.1mm) |
Flatness: | L/10 |
Surface quality: | 10-5 |
Parallelism: | 10 arc secs |
Perpendicularity: |
10 arc min |
Wavefront Distortion: |
L/10 |
Clear Aperture: |
>90% |
Coating: | Broad Band AR-coatings |
