产品说明

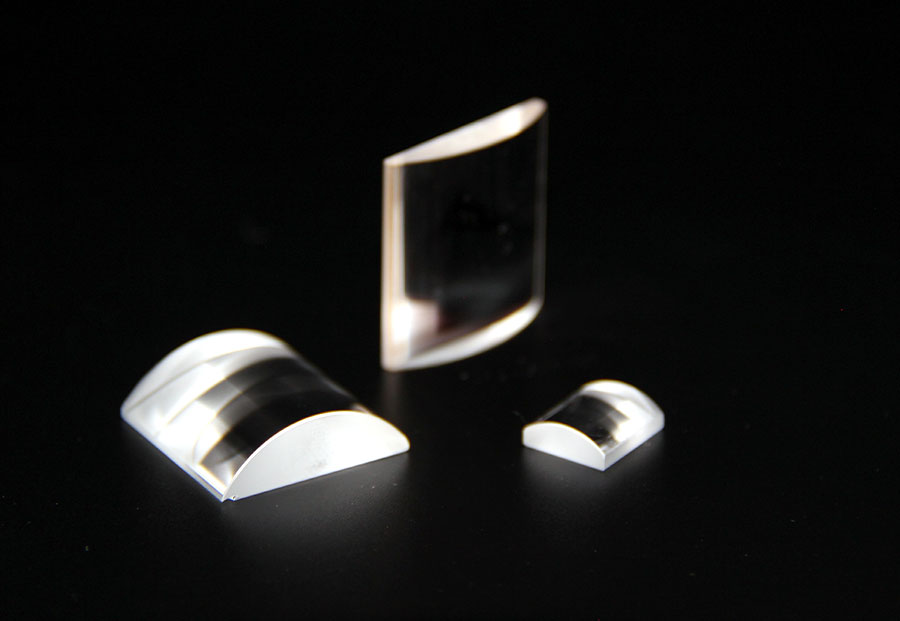

Cylindrical lenses are mainly used to change the size of imaging per design requirements. Plano convex cylindrical lenses are used to focus light to a thin line in the applications like laser scanners, spectroscopy, dye lasers, acousto-optics, optical processors and etc.

Specifications:

Material:	BK7, Fused Silica, SF10, CaF2, Sapphire .etc.
Design Wavelength:	632.8nm
Dimension Tolerance:	+0.0/-0.1mm
Thickness Tolerance:	±0.2mm
Focal Length Tolerance:	±1%
Centration:	<3 arc min
Clear Aperture:	>80%(Small Size), >95%(Laege Size)
Surface Accuracy:	λ/2@632.8nm
Surface Quality:	60/40（General),10/5(High Precision)
Bevel:	<0.2×45°
Coating:	Uncoated, AR,PR, HR, etc.
